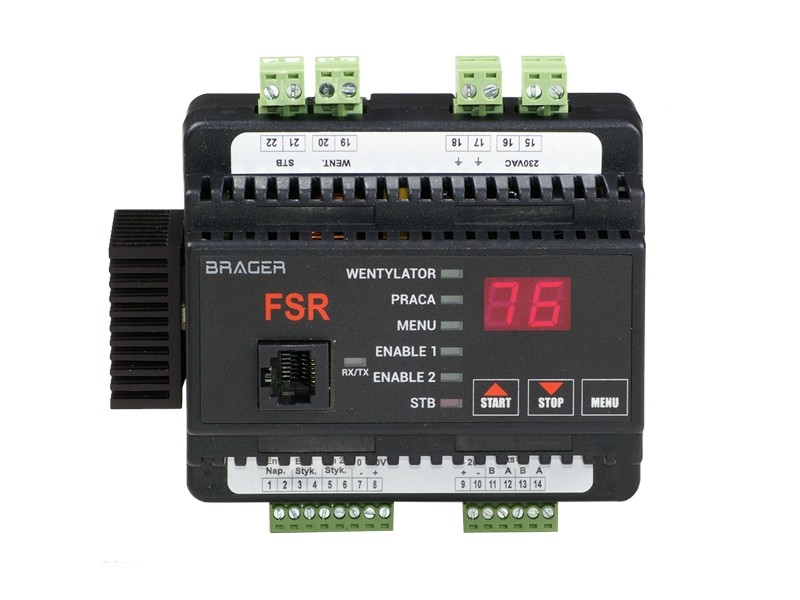

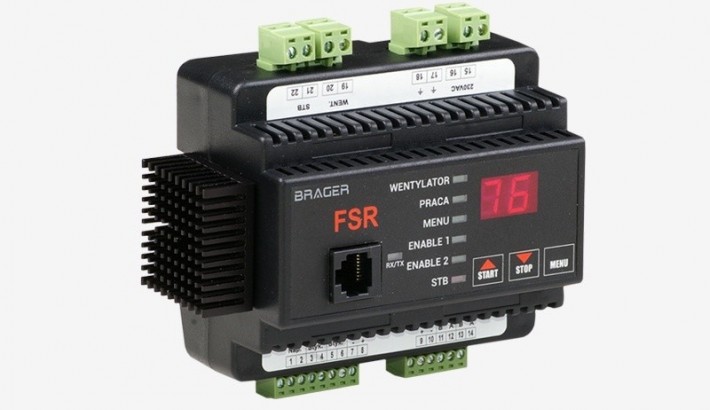

Fan rotation regulator FSR-01

Precise stepless rotation control

FSR-01 device is used to precise regulate rotation of fans equipped with single phased motor adapted to control rotation speed by changes in voltage.

Instrukcja obsługi

Controller allows precise control of fan rotation powered by voltage below 550 W

It's build is prepared to be mounted in any switch cabinets equipped with DIN rails. Device has many opportunities of settings allowing to remote control using inputs Enable 1, Enable 2, control STB safety and regulation and communication using transmission protocol BRAGER and MODBUS RTU.

Regulator FSR-01 can work independent as a device to regulate rotation speed in any single phased fan for example in heaters. Also it can be a part of extanded steering automatics which is controlled by BRAGER company's boiler automatics or PLC steering.

Key pros of regulator:

  • Stepless regulation of rotation of single phased fan powered by voltage below 550 W
  • Smooth start
  • External device operating control: Enable 1, Enable 2, STB
  • Communication protocol MODBUS RTU
  • Communication protocol BRAGER

Controller's work conditions

Source of power 230Vac, 50Hz
Range of wetness 30 - 70%
Environment temperature 5 - 40°C
Fan output electricity load 5A
Electricity usage without additional devices 1W
Montage Rail DIN
